McIntire

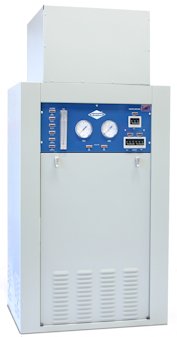

McIntire 40000M


40000M Outstanding Features:

NEBS Approved

  • Complete Two Year Warranty
  • Provides continual supply of dry, oil-free air
  • Same design characteristics as other McIntire dryers means reduced spare parts inventories and reduced training requirement
  • Simple, heatless drying system means no refrigeration system and no heated towers
  • Output Overload Protection (Flow Limiter) - prevents drying system failure due to excessive cable plant demand
  • Automatic Re-start Capability - resumes normal operation when power is restored
  • Humidity by-pass prevents dryer from delivering humid air to the cable plant
  • Multi-Function Alarm System
  • Humidity alarm cannot be overridden and activates automatically if sensor becomes disconnected
  • Supplemental Cooling System
  • No service - affecting printed circuit boards
  • Maintenance - Free Waterseal Compressors
  • Lower Sound Levels
  • Hydro-magnetic Circuit Breakers
  • Plug-in components ease service and troubleshooting
  • Lifetime Stainless Steel Components
  • Quick and easy installation
  • Optional caster mounted base
Output Capacity* (SCFD): 40,000
Operating Temperature Range: 35 to 125 degrees F
Delivered Air Pressure: 0 - 20 OSIG
Compressors (QTY): 2
Compressor HP: 3
Power 208 VAC, 60 HZ: 3 Phase
Running Amps: 20
Dimensions: 25"D X 35"W X 73"H
Net Weight: 580 Pounds
Shipping Weight: 612 Pounds

* Output capacity based on standard conditions of 70 degrees Fahrenheit and 14.7 psia ambient pressure
